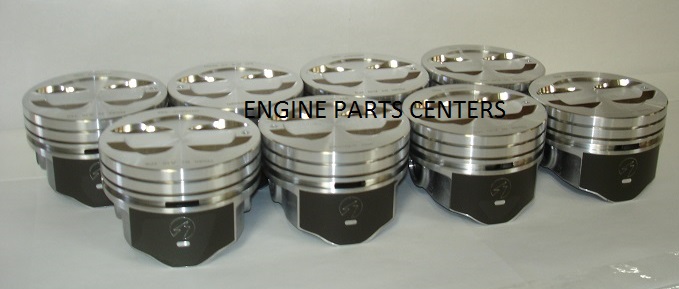

H423DCP - We also have other piston sizes available.
*Rings available separately
|
Chevrolet 350ci V-8 - 4.000" bore (at STANDARD)
Recessed head
.070" deep x 2.750" diameter w/4-valve reliefs. DurOshield coated skirt
piston. Performance or regular duty operation. Not OE-duplicate weight.
Use in sets only.
1971-86 LD Truck (USA)
1967-90 Car (USA)
|
idle to 6000+rpm |
Good for street/strip or light race |
Compression distance: 1.540"
Piston head volume: -10.0cc
Compression ratio (+.030" bore):
w/58cc heads 9.45:1
w/64cc heads 8.90:1
w/72cc heads 8.27:1
w/76cc heads 7.99:1
|
5/64" 5/64" 3/16" ring grooves
.928" pin diam.
Press-fit
These pistons can be free floated but LR63 locks must be purchased separately.
|
Stock 5.700" length rods
Stock 3.480" stroke
|
.045" deck clr
.0010" skirt clr
|
